PRODUCTS

Products lineup

3 inch Special specification cotton swab

3 inch Special specification cotton swab

SS-001 SA-001 SA-001(H)

3 inch ESD

FS-010

3 inch Flat type

BB-001FL BB-013FL

3 inch Special specification cotton swab series

Example of use

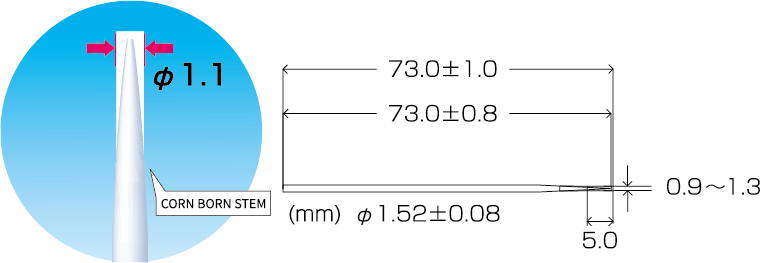

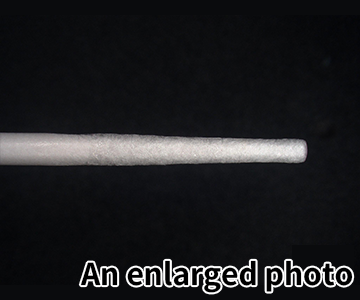

HUBY-APEX SS-001

SS-001 is an ultra slim cotton applicator. Finishing flat head and cylindrical cotton tip with special shaving on the paper stem for stiffness of the paper stem.
Lint-less, high-absorbent and burnable for easy dispose.
It is suitable for cleaning (such as optical connector LC) and concave areas where they were hard to be cleaned.

Regular carton

Quantity
20,000 pieces
Packing form
25pieces×80packs×10boxes
Outer carton
W41.5×D16.5×H21.5cm
Inner carton
W15.4×D8.2×H10.0cm
Weight
4.1kg

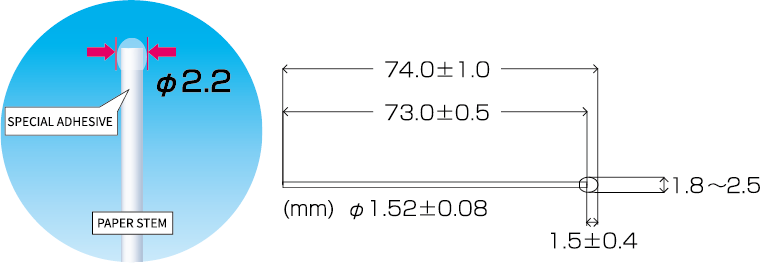

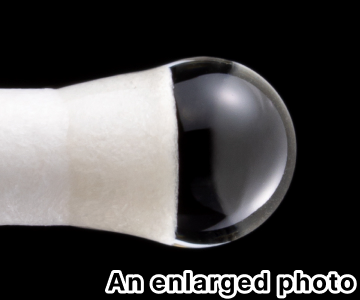

HUBY-APEX SA-001

SA-001 uses a state-of-the-art adhesive (elastomer = elastic polymer) that captures particles without leaving any residue on the applied surface.
Developed in collaboration with a major photomask manufacturer, this specially designed adhesive swab is highly effective for removing particles from applications where adhesive residue is prohibited—such as photomasks, color filters, lens assemblies, and electrical components.

Regular carton

Quantity
600 pieces
Packing form
20pieces×30packs
Outer carton
W28.5×D23.5×H22.5cm
Weight
1.0kg

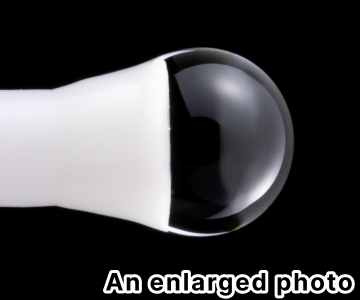

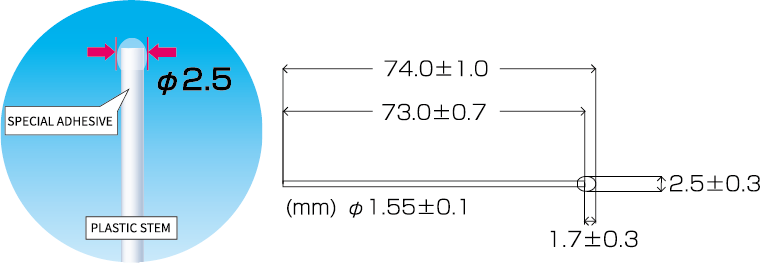

HUBY-APEX SA-001(H)

SA-001(H) uses a state-of-the-art adhesive (elastomer = elastic polymer) that captures particles without leaving any residue on the applied surface.
Developed in collaboration with a major photomask manufacturer, this specially designed adhesive swab is highly effective for removing particles from applications where adhesive residue is prohibited—such as photomasks, color filters, lens assemblies, and electrical components.

Regular carton

Quantity
600 pieces
Packing form
20pieces×30packs
Outer carton
W28.5×D23.5×H22.5cm
Weight
1.0kg

3 inch ESD series

Example of use

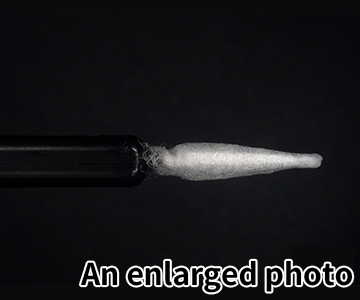

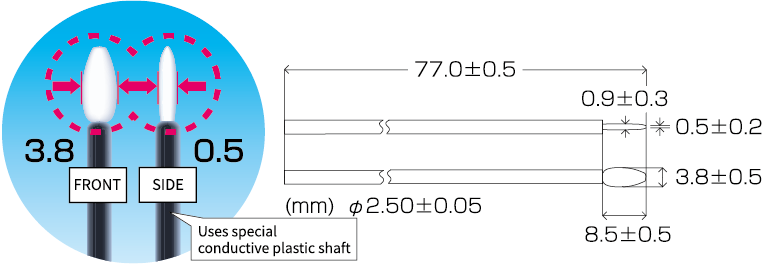

HUBY-340 FS-010

FS-010 is conductive carbon stem swab. Paper stem is easy to absorb moisture by nature, the values are low for resistance value, friction hitch voltage and decay time values but it is not placed under control. FS-010 uses conductive material to control above mentioned issues.

Regular carton

Quantity
12,500 pieces
Packing form
25pieces×50packs×10boxes
Outer carton
W41.5×D16.5×H21.5cm
Inner carton
W15.3×D8.2×H10.1cm
Weight
5.0kg

3 inch Flat type series

Example of use

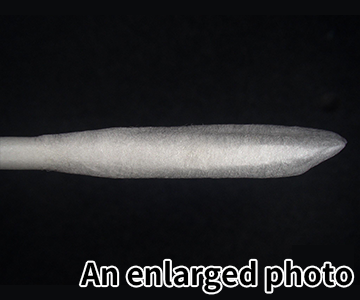

HUBY-340 BB-001FL

With flatten the tip of the BB-001, now available to clean very narrow gap on an electronic component. Cotton tip does not collapse under the usage of solvent such as IPA because of high density in the cotton tip.

Regular carton

Quantity
50,000 pieces
Packing form
25pieces×100packs×20boxes
Outer carton
W52.0×D33.5×H42.5cm
Inner carton
W32.1×D10.2×H10.1cm
Weight
13.0kg

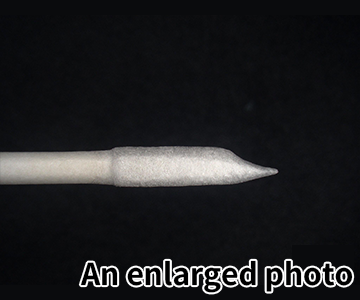

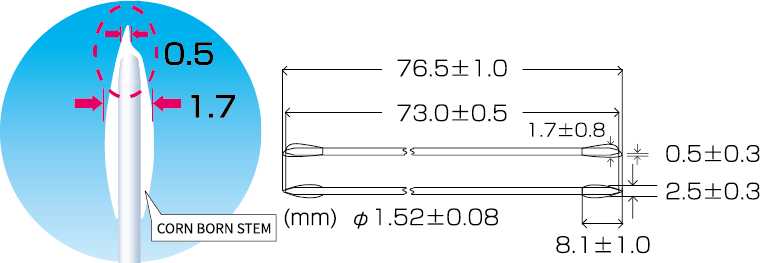

HUBY-340 BB-013FL

BB-013FL is possible to clean very narrow gap more than BB-001FL.
Cotton tip does not collapse under the usage of solvent such as IPA because of high density in the cotton tip.

Regular carton

Quantity
50,000 pieces
Packing form
25pieces×100packs×20boxes
Outer carton
W41.5×D25.0×H42.0cm
Outer carton(中boxes)
W23.5×D8.2×H10.1cm
Weight
11.2kg
Click here to request
RoHS・MSDS・etc
